Embedded Linux | CUDA | Computer Vision

Offline Video Encryption on NVIDIA Jetson Nano

Ported a chaos-based video encryption workflow onto Jetson Nano Linux. The first app encrypts a video and creates a `.enc` output file, then a second app decrypts that file and plays the restored video.

Jetson Nano Embedded Linux CUDA OpenCV PyCUDA tegrastats

Overview

From encryption research to an embedded Linux file workflow.

The project moved a chaos-based image and video encryption concept into a Jetson Nano workflow. It runs as two clear Linux applications: one creates an encrypted `.enc` file, and the other decrypts that file for playback.

Linux

Jetson deployment

Ran the project on Jetson Nano with the NVIDIA Linux stack, CUDA tools, OpenCV, and Python dependencies.

CUDA

GPU acceleration

Moved frame encryption work into CUDA-backed kernels through PyCUDA for GPU-side processing.

Trace

Runtime profiling

Captured tegrastats, cProfile output, and recorded CPU/GPU test runs to validate behavior on the device.

Architecture

How the encrypt-file and decrypt-play workflow runs on Jetson Linux.

Input video processing

OpenCV reads the source video, resizes frames for embedded testing, and prepares frame data for encryption.

Chaotic keystream generation

Lorenz, Rossler, Henon, and Tent map outputs are used as the basis for frame-level encryption streams.

Encrypted file generation

The encryption app processes the video frames and writes the encrypted output into a `.enc` file for later use.

Separate decrypt-and-play app

A second application reads the `.enc` file, decrypts the frames, and plays the restored video while Linux telemetry is captured.

Embedded Linux Work

The useful engineering was in setup, file-based processing, measurement, and device-aware tuning.

Jetson Nano tegrastats output during GPU encryption benchmark

Board software stack

Prepared the Jetson Nano Linux environment with Python, OpenCV, NumPy, SciPy, PyCUDA, and CUDA tooling.

Resource monitoring

Used tegrastats to observe RAM, swap, CPU frequency, GPU load, and thermal state during encryption and decrypt-play runs.

Profiling discipline

Used cProfile and recorded benchmark runs to identify setup cost, frame-processing cost, and GPU execution behavior.

Jetson Nano workflow
  -> boot Jetson Linux
  -> install Python/OpenCV/CUDA dependencies
  -> run encryption app on source video
  -> write encrypted .enc output file
  -> run decrypt-and-play app on .enc file
  -> monitor with tegrastats
  -> profile with cProfile
  -> compare recorded benchmark runs

Evidence

Screenshots and videos from real Jetson Nano runs.

Jetson Nano terminal showing encryption with tegrastats — **Encryption telemetry**
GPU encryption run with Jetson resource monitoring visible beside the benchmark output.

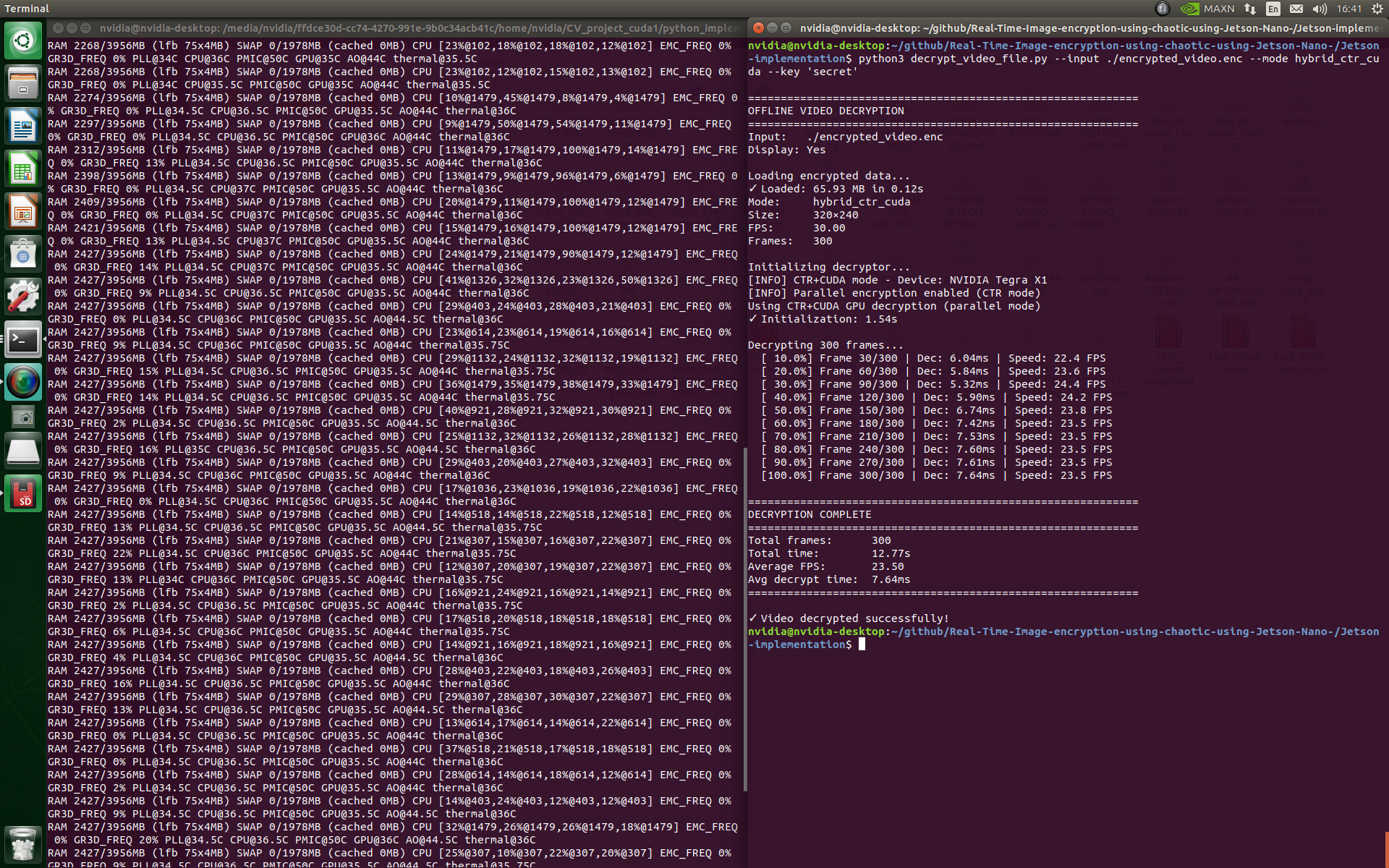

Jetson Nano terminal showing decryption with tegrastats — **Decryption telemetry**
Decrypt-and-play run showing memory, CPU, GPU, and thermal behavior while restoring encrypted video data from the `.enc` file.

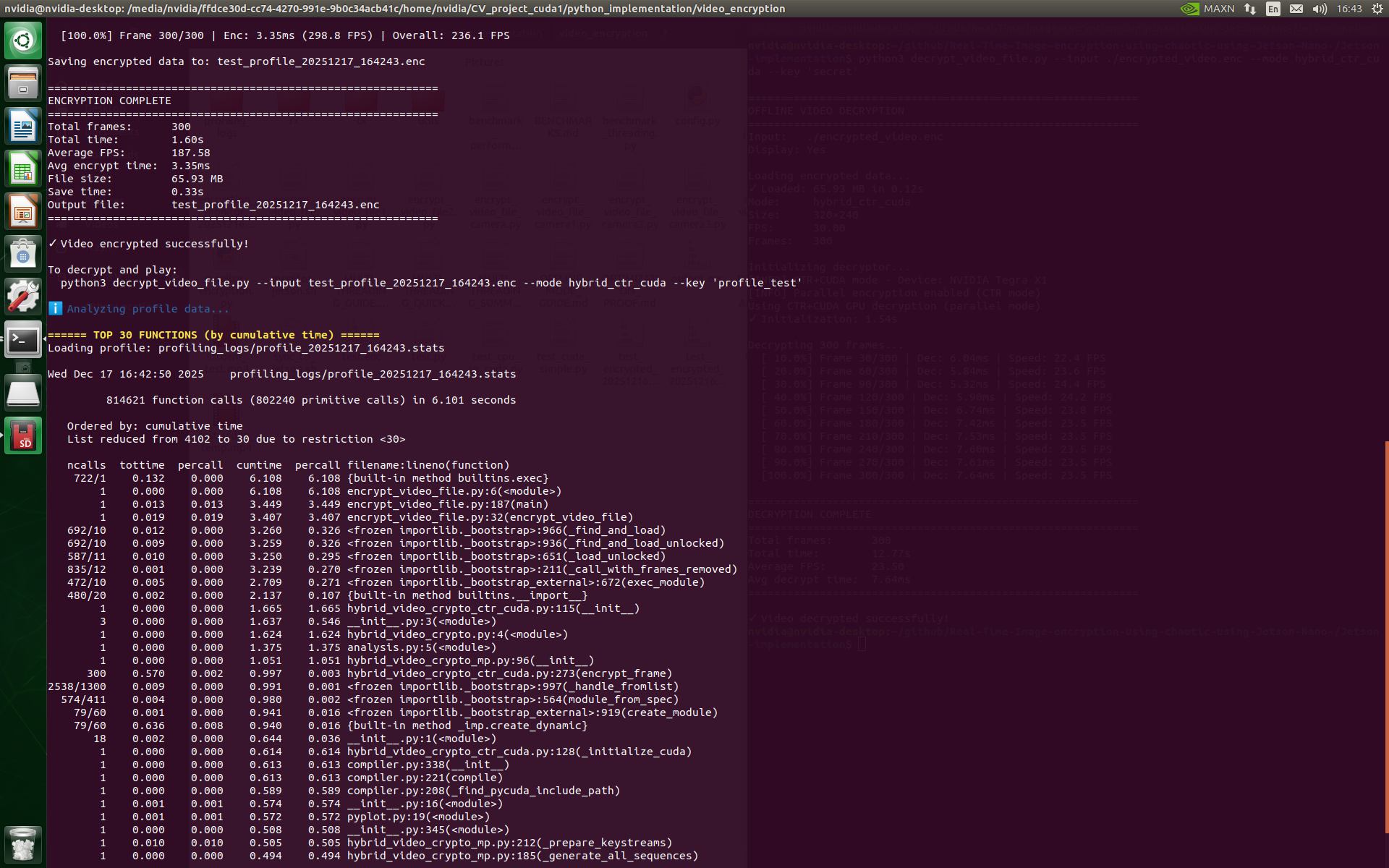

cProfile timing output for the video encryption code — **Python cProfile output**
Function-level timing used to understand initialization, CUDA compile, and frame-processing cost.

GPU resource recording

Recorded benchmark evidence showing resource behavior during the accelerated run.

GPU test run

Video capture of the GPU workflow: encrypting the source video, then using a separate app for decryption and playback.

CPU baseline run

Recorded CPU-mode workflow used as the comparison point for GPU acceleration in the file-based process.

Things I Learned

Linux-side lessons from CUDA work on embedded hardware.

Jetson Linux setup

I learned how important the board image, CUDA version, Python packages, and OpenCV installation are before performance work even starts.

CPU/GPU visibility

I learned to use tegrastats as a practical Linux tool for checking whether GPU acceleration is really active during a workload.

Memory transfer cost

I saw that moving frame data between CPU and GPU memory can affect performance as much as the encryption kernel itself.

Thermal and clock behavior

I learned to watch CPU/GPU clocks and temperature because embedded benchmarks can change as the board heats up or changes frequency.

Profiling before optimizing

I learned to use cProfile and real benchmark logs before changing code, so optimization decisions are based on measured bottlenecks.

Embedded-friendly workloads

I learned to choose practical frame sizes, repeatable frame counts, and clear CPU/GPU modes so results make sense on limited hardware.

Outcome

A measurable embedded Linux GPU acceleration project.

The final result demonstrates a full path from algorithm porting to Jetson Nano deployment: video file input, encrypted `.enc` output, separate decrypt-and-play execution, CPU/GPU modes, resource monitoring, profiling, and recorded benchmark evidence from the target device.
